I’m studying how we can add light and shadow to widgets and items. I want to hear what you think :-). So I’ll just throw out my ideas and see what happens.

Light and shadow are special effects that follow and decorate items, and affect how they are rendered, at the same time as they’re a bit different from regular items / subitems, or subwidgets. For both light and shadow effects, there’s sometimes a need to render outside the item’s boundaries and blend into surroundings. For widgets, we then need to do something to break out of the box model… to make that happen. For inside-widget light effects, we’re limited to what we can do inside paintEvent() or inside the paint() function. I don’t know about you, but I think both light and shadow effects should be primary citizens of the scene graph, which essentially means they are also items. Stack-above / always-on-top (overlays) or stack-below / always-below items (underlays?).

Here’s a flash video showing a sample of what I’m working on. This is based on Graphics View.

The scene consists of 150 elliptoid items with shadows, and one light source that’s flying over it. It’s a bit psychedelic; anyone who loves colliding mice will love this. Haha.

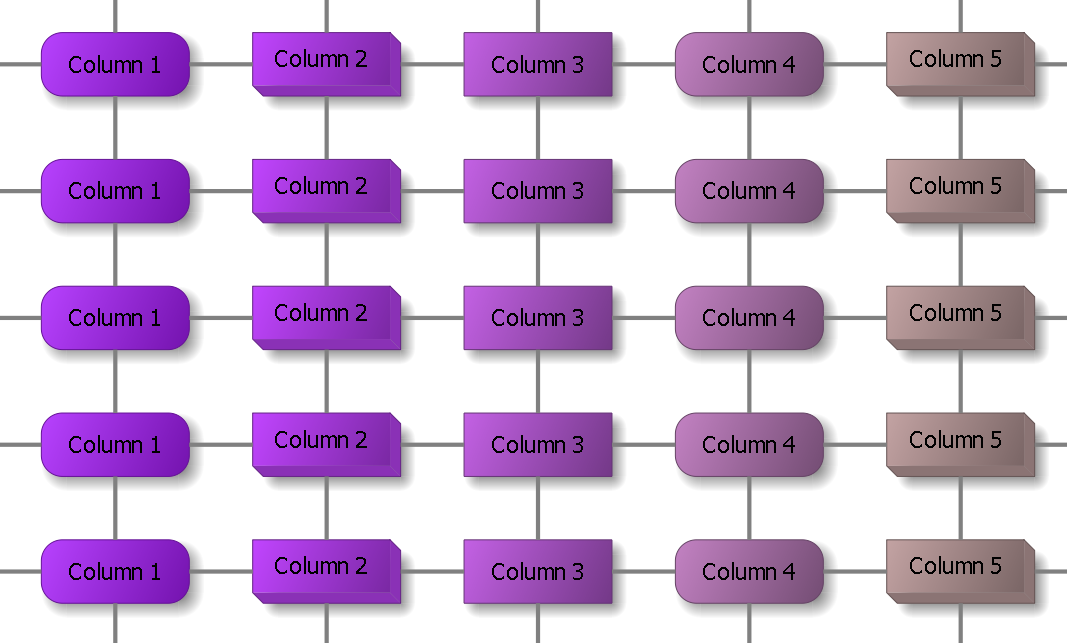

Let’s start with shadows. In 2D, shadows can be pretty simple. Shadows can be thought of as transformed filled outlines of an object with a dark semitransparent fill and possibly fuzzy/blurred edges, stacked below the object itself. It has an offset, and/or an angle. The offset can be fixed for all items, or relative to one or more light sources. Ideally two shadows on top of each other don’t make a darker shadow, rather they blend with each other along the edges. Exact shadows are expensive to do accurately, and in many cases they’re completely pointless because they’re hard to see in the first place; at least the types of shadows we foresee being used in 2D / 2.5D UIs… Extreme shadows are cool but useless, subtle shadows, however, to me, are/can be beautiful. There seems to be a “market” for simple stupid fast shadows (e.g., bounding rect / bounding region based), pretty good medium-speed shadows (e.g., shape based), and custom shadows. And possibly perfect shadows (e.g., based on paint()) but I don’t really think that market is very big :-)).

As for how shadows are stacked, the easiest way is to just say that an item with a shadow always renders the shadow before itself. This works fine for most cases. But as soon as sibling items come close, and one’s shadow renders on top of the other, it starts looking wrong.

Take 1: Sibling shadow overlaps	Take 2: Sibling shadows behind both

It would be nice if I could set a shadow on our favorite “Drag And Drop Robot” without having lower leg shadows cast on the upper legs, or a shadow from the left leg draw on top of the right leg. I can see the need for both, but what would the API look like? And how would the items be stacked? My solution right now is to add a special flag to QGraphicsItem called QGraphicsItem::ItemStacksBehindParent (the child and its children are behind the parent), which is certainly one step on the way.

The other thing is how the shadow is placed. I don’t know about you, but I hate it how some presentation tools rotate the shadow relative to the item when you rotate and item that has a shadow on it. A picture says more than a thousand words:

No Shadow follows item.	Yes! Shadow follows scene :-)).

It’s a bit complicated though because you want the shadow to follow the item, but you wants its offset to be done scene-relative. Turns out it’s just that the item’s local transform is prepended to instead of appended to the parent item’s scene transform. So I added a flag for that: QGraphicsItem::ItemBeforeSceneTransform. Btw this is just research, it’s not in Qt snapshots or anything.

Now light effects come in many different shapes and colors. Light can affect shadows, or it can just add a glow to an item. Light is typically represented by an abstract member of the scene, to which you can calculate distance and angle and apply a suitable effect to your item, or the background, and so on. In styling, we usually fake light big-time by just applying light and dark effects to our button bevels, or use pixmaps that look shiny and sparkly. Which, of course, is in many cases much faster than doing “correct lighting”. I recall once Zack Rusin and I were talking crap, I don’t know who brought it up but if the whole UI was a complex detailed 3D scene graph, lighting could come by itself (I think the discussion started with why buttons in RTL mode don’t have shadows cast as if the sun shine from the upper right).

For blend effects it’s also necessary to apply aftereffects that combine the source and destination. That can be done in two ways - either just via an offscreen buffer, or directly onto the destination device / framebuffer / or so. If we want blend effects I think we need some type of shader integration. Let’s not digress though.

So, ball in your court. What are your thoughts about light and shadow?
